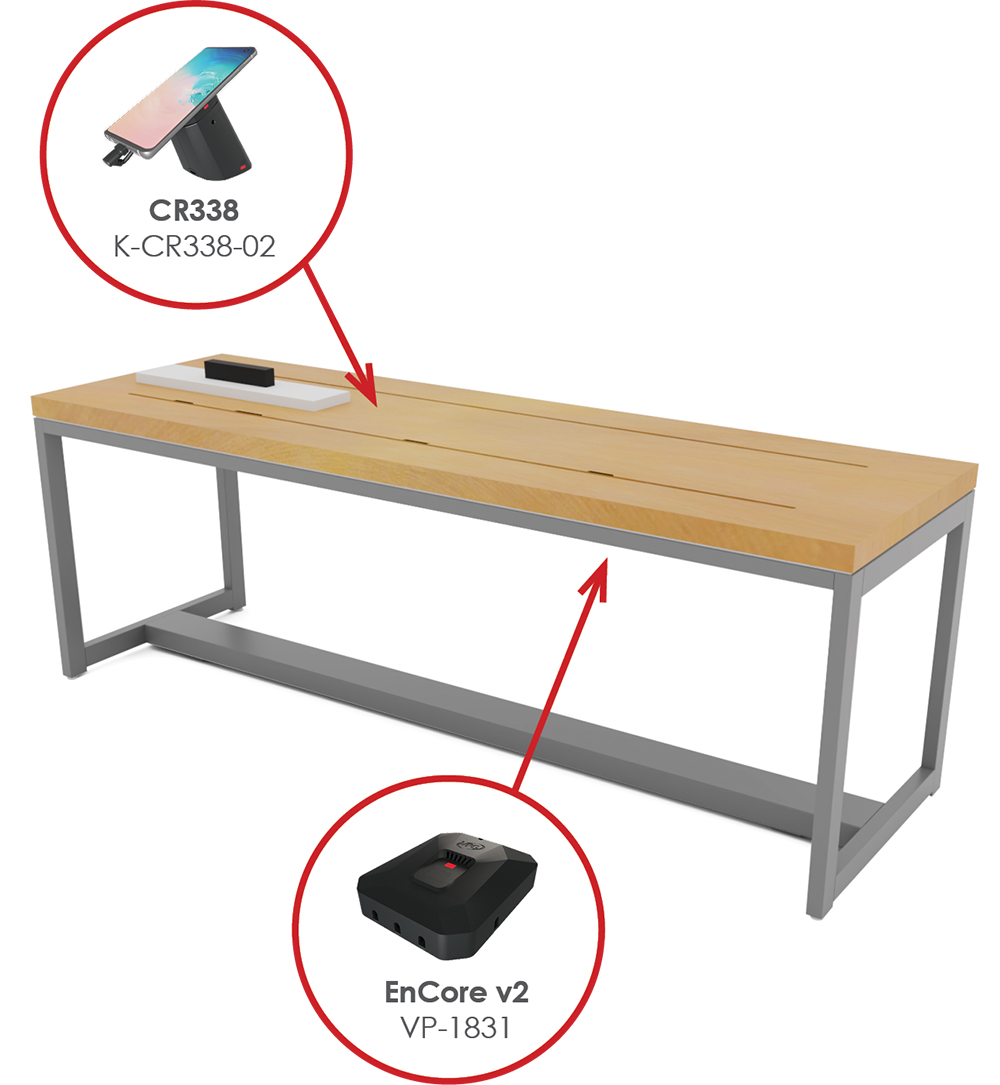

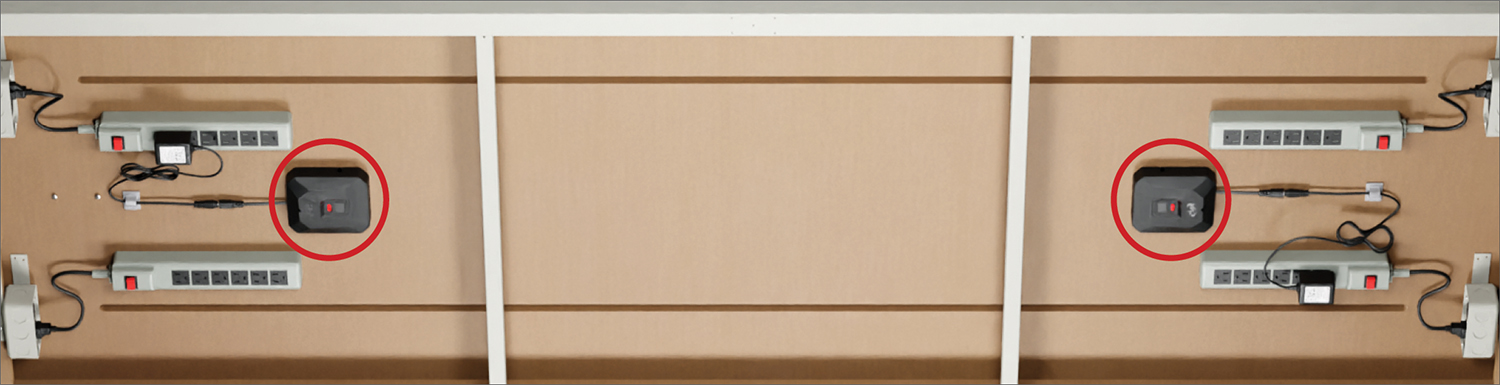

EnCores will be used on opposite ends of the fixture. Exact placement may need to vary based on what products are secured in what positions on the table.

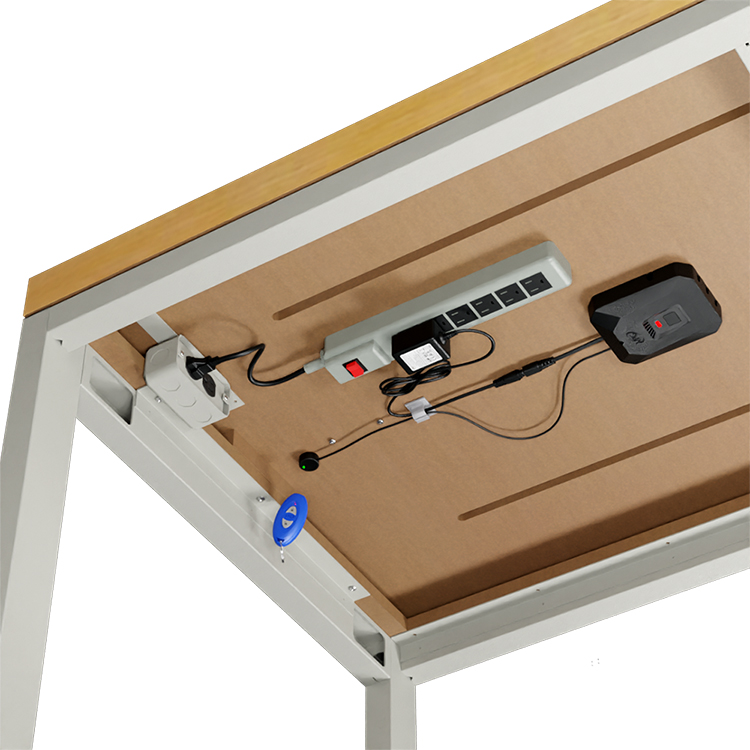

The IR receiver dome will be mounted on opposite ends of the table. Plug the EnCore into a V-37 power supply and plug it into the nearest power strip.
Use the Triad-supplied adhesive backed cable management clips, or Vanguard supplied velcro for cable management.
IR Extender Cable (KF-1102)
The IR extender cables attach to the rear of the EnCore alarms, and will adhere on opposite ends of the table.
With EnCores on both sides of the table, secure products with the EnCore closest to the position you are securing for ideal cable management.
CR361s are used to secure phones and tablets that are not displayed on platters or risers.
The power cables run through the slots and plug into a V-39 power supply.
Amount of phones secured by a CR361 will vary in future product roll-outs.
Securing iPads & Keyboards
In order to completely secure an Apple iPad that uses a keyboard, you will need to adhere an X-Sensor to the back of the keyboard.
Use an X-Sensor flex cover over the X-Sensors in order to provide an extra bond between the sensor and the keyboard.
If displaying a stylus, or any other 2-in-1 accessories, make sure to apply an X-Sensor to the product.
