Verizon Smart Store Security Installation

SMART DEVICE WALL

Best Practices

How to Remove Front Panel

Lift, then pull front panel above bottom drawer to remove from fixture.

Phone & Tablet Security

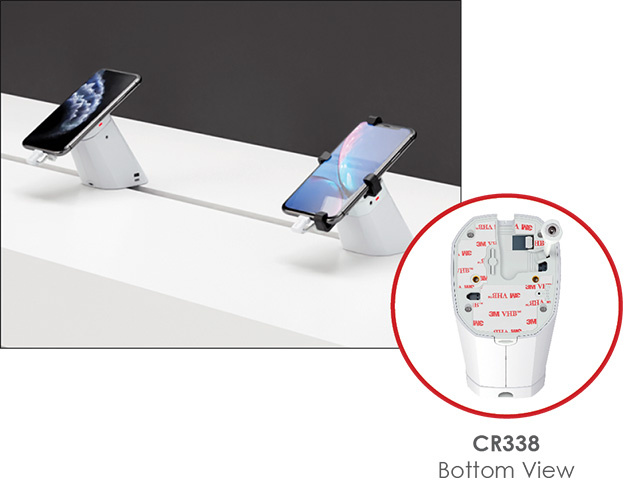

CR338 positions will adhere to the top of the Smart Device Wall shelf. Verizon - Device Wall 1Ensure the tamper switch is depressed and the power cord is properly aligned prior to securing the pedestal in place.
Verizon Smart Store - CR338 Alignment EnCore Accessory Security

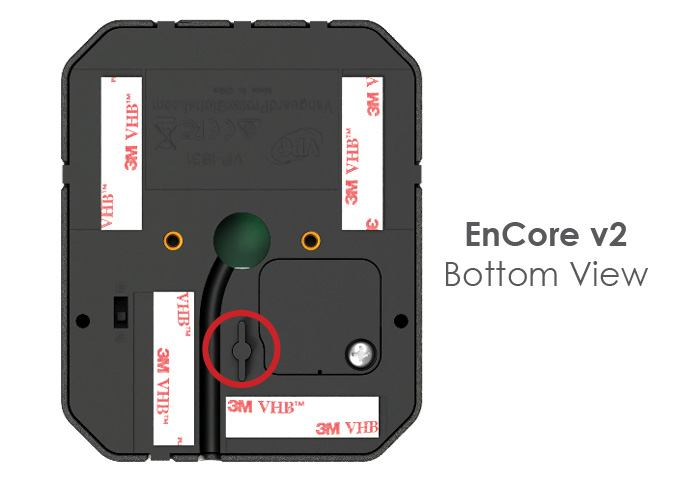

The EnCore alarms are to be placed behind the removable panel on the front of the fixture. Ensure the tamper switch is depressed prior to securing the EnCore in place. Verizon - EnCore Bottom View IR Extender Cable (KF-1102)

The IR extender cable is used to extend the EnCore receiver. Feed the cable up through the fixture slot and adhere the dome to the top shelf close to the edge of the slot. When it’s plugged in, you will see a green light illuminated on the dome. To arm and disarm the EnCore alarm, point the IR keyfob at the dome. Verizon - Device Wall 3 Sensors

Sensors can route from the EnCore, up through the slot. Micro-USB, Type-C, and X-Sensors feed up through the fixture and plug in, or adhere to products. Up to 5 sensors are used with the EnCore. Typically, you will not use all 5. Verizon - Sensors Power Supply

The power supplies can be plugged into the power strips located behind the removable panel.

Fixture Install Video

CR338

VPG - CR338

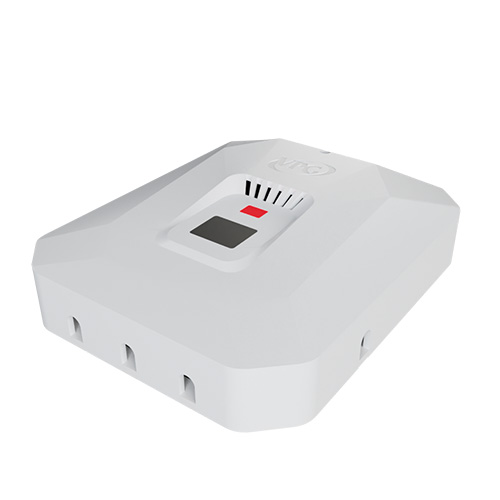

EnCore

VPG - EnCore

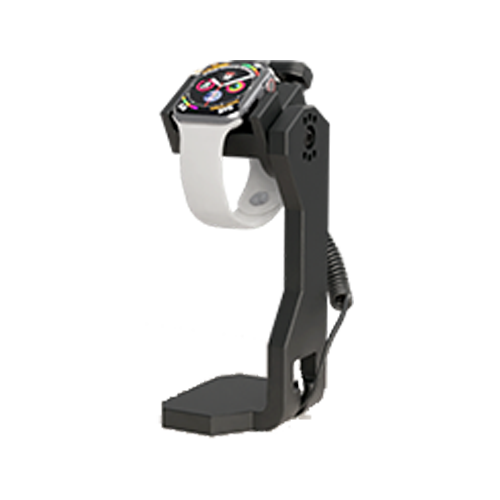

Slim Wearable Sensor

VPG - Slim Wearable Sensor

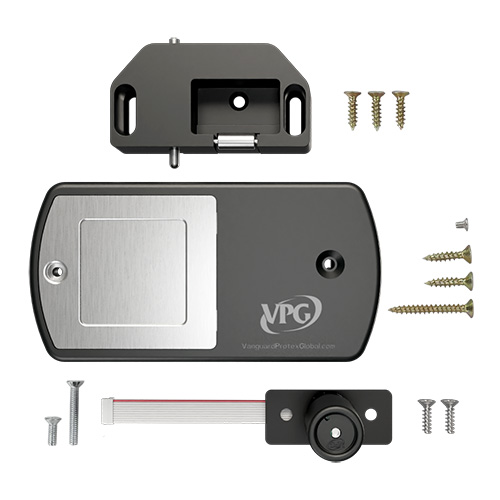

Cabinet Lock

VPG - Cabinet Lock
