Verizon Smart Store Security Installation

SMART FULL ZONE TABLE

Best Practices

How to Remove Front Panel

Lift and remove wood platter and the center cover panels on top of the table.

Pull latch to open underside panels and push latch to close.

Phone & Tablet Security

CR338 positions will adhere to the top of the Smart Full Zone Table.

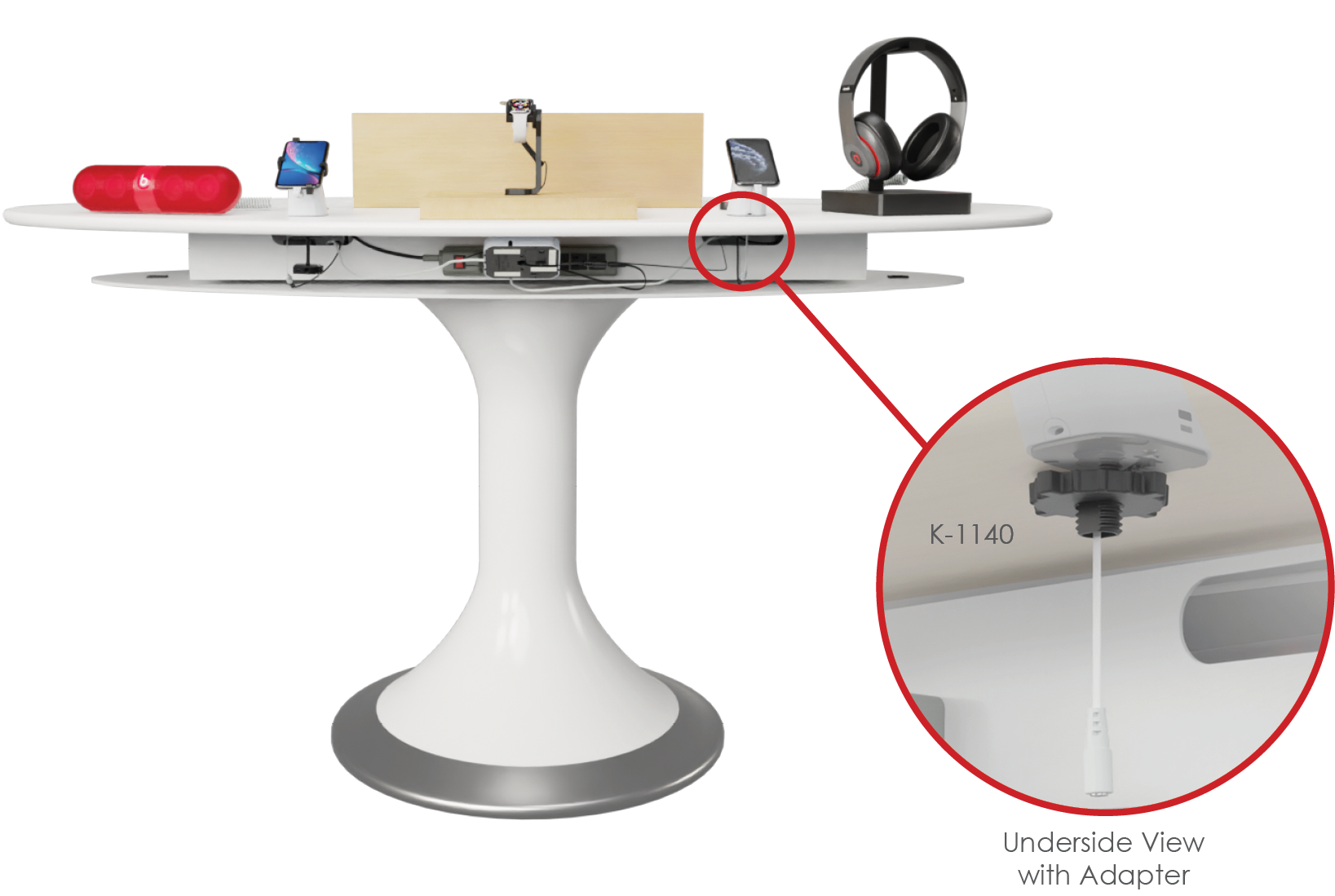

For tables with the overlay, secure the CR338 using the K-1140 adapter mounting kit. This may already be installed on the CR338.

Verizon - Smart Full Zone Table

Ensure the tamper switch is depressed and the power cord is properly aligned prior to securing the pedestal in place.

Verizon Smart Store - CR338 Alignment

Accessory Security

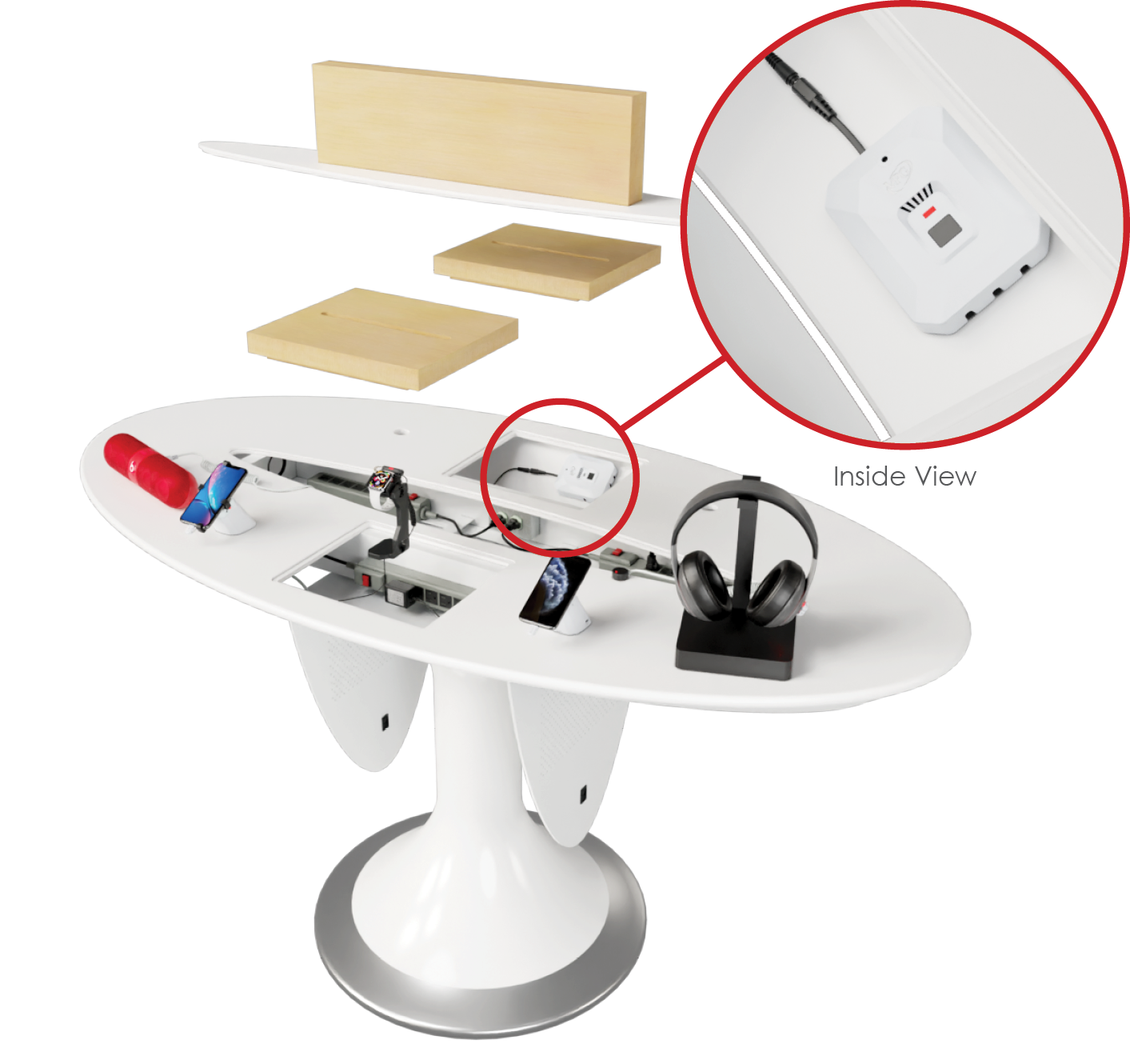

The EnCore alarms can be placed in the recess underneath the wooden blocks on either side of the table.

Verizon - Smart Full Zone Table 2

Ensure the tamper switch is depressed prior to securing the EnCore in place.

Verizon - EnCore Bottom View

Sensors

Sensors can be routed to the center of the fixture and out through the mouse holes in the center cover. For accessories displayed on the wood blocks, sensors can be routed directly up through the slot in the block.

Micro-USB, Type-C, and X-Sensors feed up through the fixture and plug in, or adhere to products.

Up to 5 sensors are used with the EnCore. Typically, you will not use all 5.

Verizon - Sensors

IR Extender Cable (KF-1102)

The IR extender cable is used to extend the EnCore receiver.

Feed the cable up through the fixture slot and adhere the dome to the top shelf close to the edge of the slot.

When it’s plugged in, you will see a green light illuminated on the dome.

To arm and disarm the EnCore alarm, point the IR keyfob at the dome.

Verizon - Smart Full Zone Table 3

Power Supply

The power cable drops through the hole and rounds into the ‘trap door’ on the bottom of the table.

Fixture Install Video

CR338

VPG - CR338

EnCore

VPG - EnCore

Slim Wearable Sensor

VPG - Slim Wearable Sensor
