How to Remove Front Panel
Lift, then pull the two front, center panels to remove from the fixture.
Phone & Tablet Security
CR338 positions will adhere to the top of the shelf. If fixture is using an overlay, secure the CR338 using the K-1140 adapter mounting kit. This may already be installed on the CR338.
Ensure the tamper switch is depressed and properly aligned prior to securing the pedestal in place.

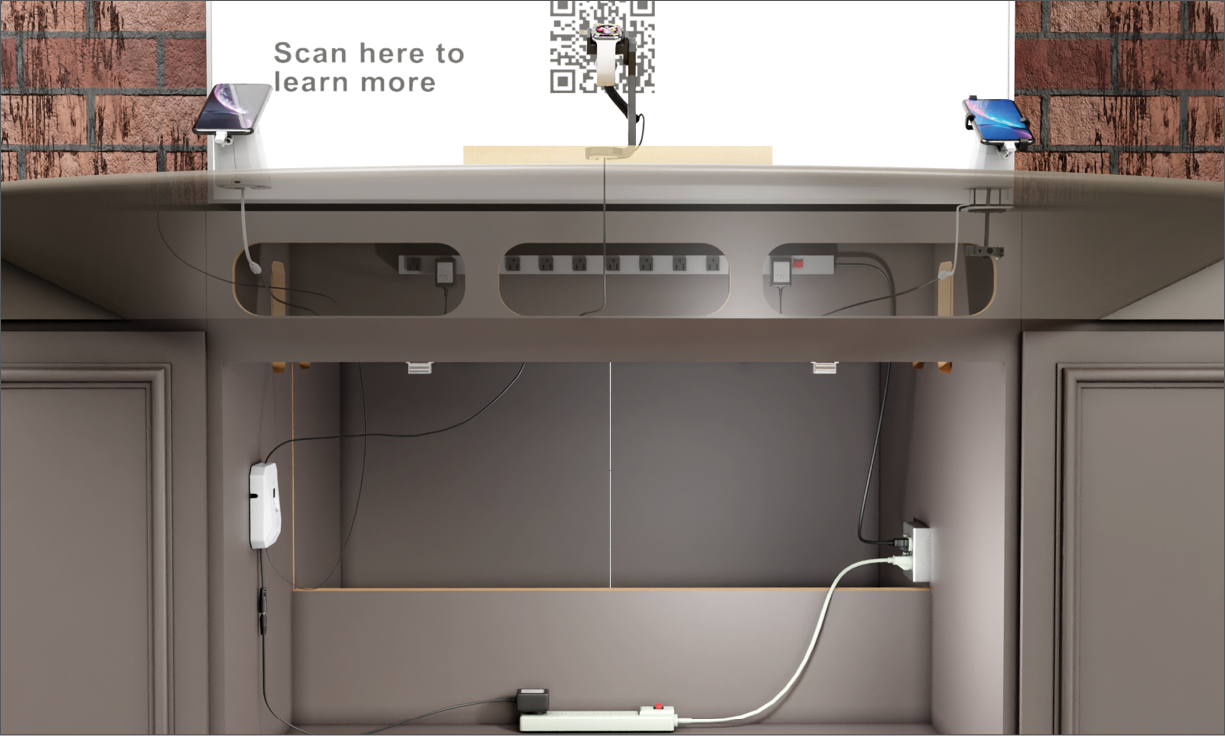

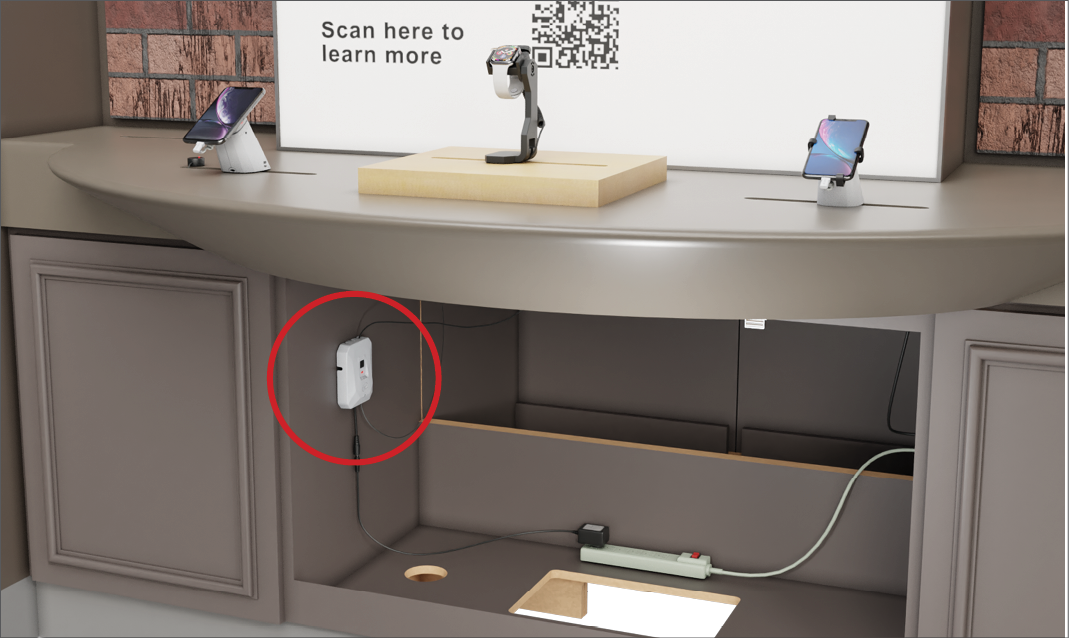

The EnCore alarms can be placed in the bottom of the fixture behind the middle panel. Place EnCore on closest side wall to product positions.
Ensure the tamper switch is depressed prior to securing the EnCore in place.
IR Extender Cable (KF-1102)
The IR extender cable is used to extend the EnCore receiver.

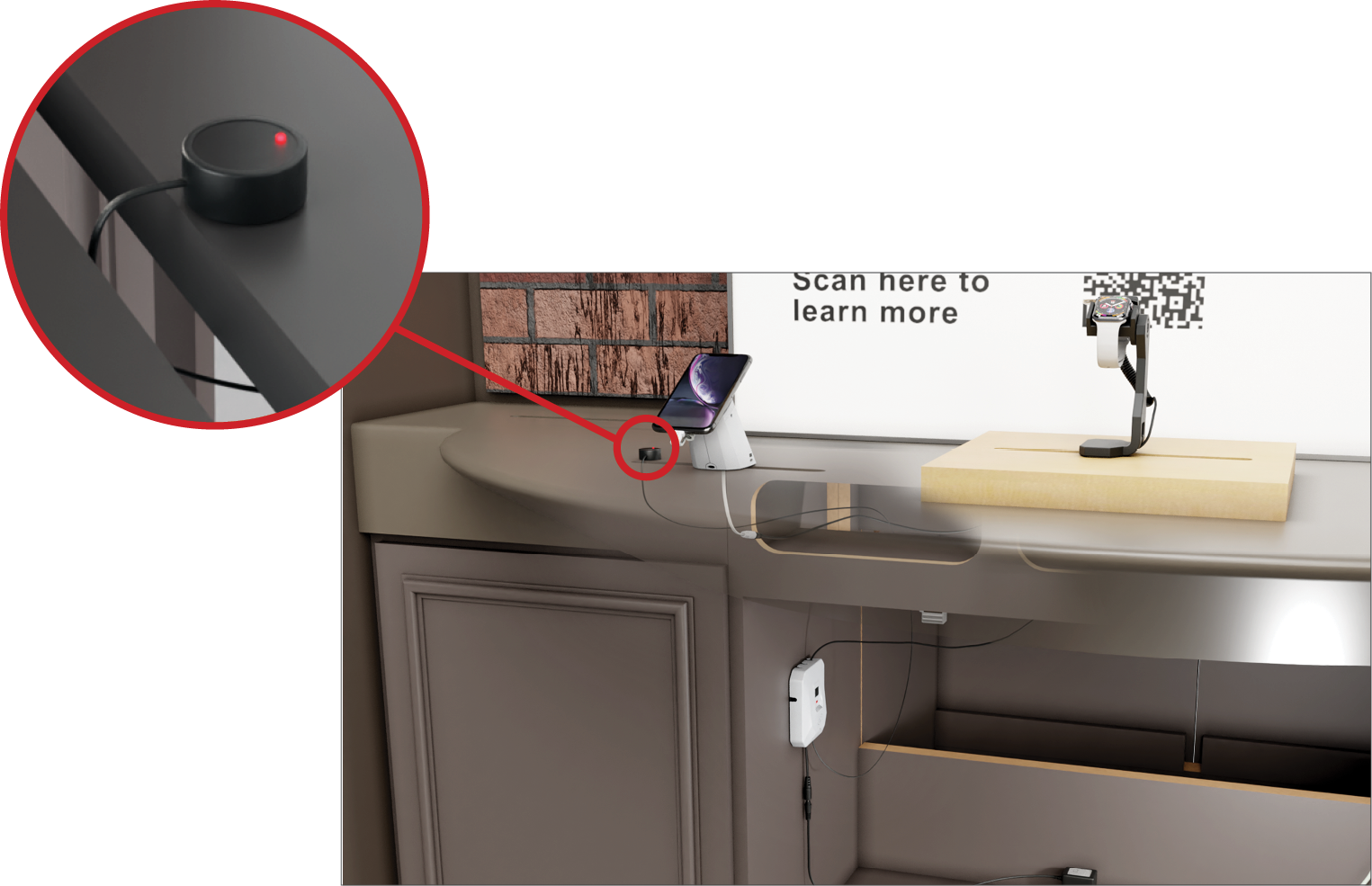

Feed the cable up through the fixture slot and adhere the dome to the top shelf close to the edge of the slot.
When it’s plugged in, you will see a green light illuminated on the dome.
To arm and disarm the EnCore alarm, point the IR keyfob at the dome.
Sensors can route behind the shelf, and up through the slot.
Micro-USB, Type-C, and X-Sensors feed up through the fixture and plug in, or adhere to products.
Up to 5 sensors are used with the EnCore. Typically, you will not use all 5.
The power cable can be routed behind the shelf and plugged into the power supply behind the middle panel at the bottom of the fixture.
